產品中心

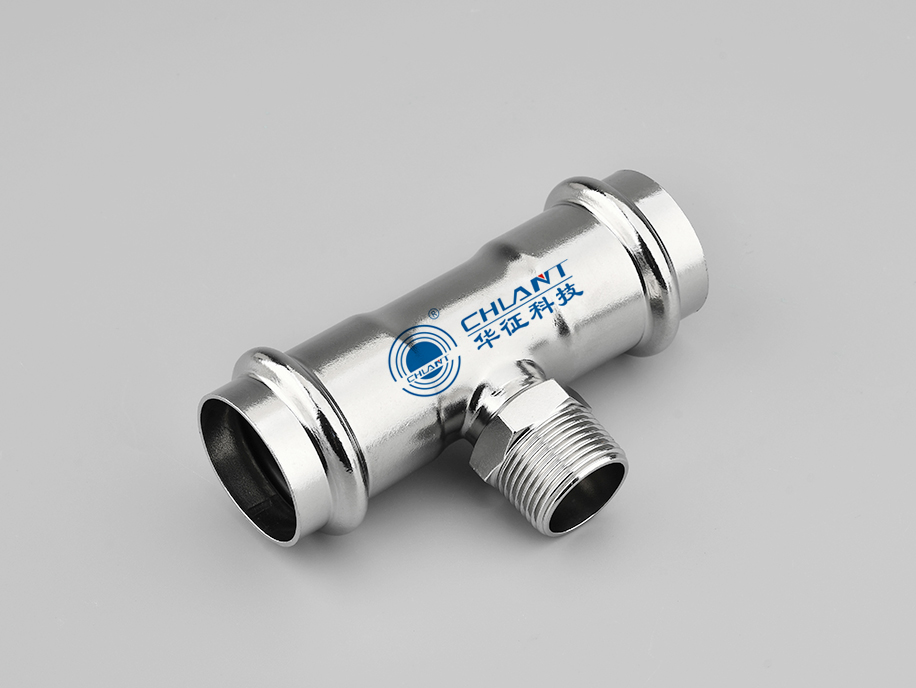

外螺紋三通
所屬分類:卡壓式管件
詳細介紹
外螺紋三通規格參數

產品代碼 公稱尺寸DN I系列外徑 II系列外徑
JFTETC-1501 15×Rp1/2" 16×Rp1/2" 15.88×Rp1/2"
JFTETC-2001 20×Rp1/2" 20×Rp1/2" 22.2×Rp1/2"
JFTETC-2002 20×Rp3/4" 20×Rp3/4" 22.2×Rp3/4"
JFTETC-2501 25×Rp1/2" 25.4×Rp1/2" 28.6×Rp1/2"
JFTETC-2502 25×Rp3/4" 25.4×Rp3/4" 28.6×Rp3/4"
JFTETC-2503 25×Rp1" 25.4×Rp1" 28.6×Rp1"
JFTETC-3201 32×Rp1/2" 32×Rp1/2" 34×Rp1/2"
JFTETC-3202 32×Rp3/4" 32×Rp3/4" 34×Rp3/4"
JFTETC-3203 32×Rp1" 32×Rp1" 34×Rp1"
JFTETC-3204 32×Rp1-1/4" 32×Rp1-1/4" 34×Rp1-1/4"
JFTETC-4001 40×Rp1/2" 40×Rp1/2" 42.7×Rp1/2"
JFTETC-4002 40×Rp3/4" 40×Rp3/4" 42.7×Rp3/4"
JFTETC-4003 40×Rp1" 40×Rp1" 42.7×Rp1"
JFTETC-4004 40×Rp1-1/4" 40×Rp1-1/4" 42.7×Rp1-1/4"
JFTETC-4005 40×Rp1-1/2" 40×Rp1-1/2" 42.7×Rp1-1/2"
JFTETC-5001 50×Rp1/2" 50.8×Rp1/2" 48.6×Rp1/2"
JFTETC-5002 50×Rp3/4" 50.8×Rp3/4" 48.6×Rp3/4"
JFTETC-5003 50×Rp1" 50.8×Rp1" 48.6×Rp1"
JFTETC-5004 50×Rp1-1/4" 50.8×Rp1-1/4" 48.6×Rp1-1/4"
JFTETC-5005 50×Rp1-1/2" 50.8×Rp1-1/2" 48.6×Rp1-1/2"
JFTETC-5006 50×Rp2" 50.8×Rp2" 48.6×Rp2"
JFTETC-6002 60×Rp3/4" 63.5×Rp3/4" /
JFTETC-6502 65×Rp3/4" 76.1×Rp3/4" 76.1×Rp3/4"
JFTETC-8002 80×Rp3/4" 88.9×Rp3/4" 88.9×Rp3/4"
JFTETC-10002 100×Rp3/4" 101.6×Rp3/4" 108×Rp3/4"

?
