產品中心

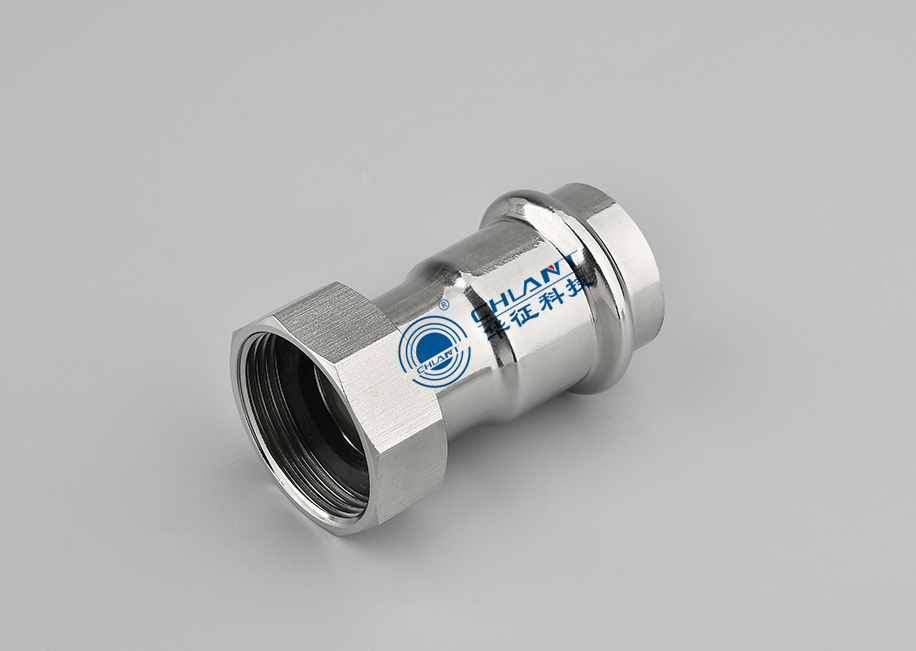

移動螺母活接
所屬分類:卡壓式管件
詳細介紹
移動螺母活接規格參數

產品代碼 公稱尺寸DN I系列外徑 II系列外徑
JFDTC-1501 15×Rp1/2" 16×Rp1/2" 15.88×Rp1/2"
JFDTC-2001 20×Rp1/2" 20×Rp1/2" 22.2×Rp1/2"
JFDTC-2002 20×Rp3/4" 20×Rp3/4" 22.2×Rp3/4"
JFDTC-2003 20×Rp1" 20×Rp1" 22.2×Rp1"
JFDTC-2501 25×Rp1/2" 25.4×Rp1/2" 28.6×Rp1/2"
JFDTC-2502 25×Rp3/4" 25.4×Rp3/4" 28.6×Rp3/4"
JFDTC-2503 25×Rp1" 25.4×Rp1" 28.6×Rp1"
JFDTC-3201 32×Rp1/2" 32×Rp1/2" 34×Rp1/2"
JFDTC-3203 32×Rp1" 32×Rp1" 34×Rp1"
JFDTC-3204 32×Rp1-1/4" 32×Rp1-1/4" 34×Rp1-1/4"
JFDTC-4001 40×Rp1/2" 40×Rp1/2" 42.7×Rpl/2"
JFDTC-4004 40×Rp1-1/4" 40×Rp1-1/4" 42.7×Rp1-1/4"
JFDTC-4005 40×Rp1-1/2" 40×Rp1-1/2" 42.7×Rp1-1/2"
JFDTC-5001 50×Rp1/2" 50.8×Rp1/2" 48.6×Rp1/2"
JFDTC-5002 50×Rp3/4" 50.8×Rp3/4" 48.6×Rp3/4"
JFDTC-5003 50×Rp1" 50.8×Rp1" 48.6×Rp1"
JFDTC-5005 50×Rp1-1/2" 50.8×Rp1-1/2" 48.6×Rp1-1/2"
JFDTC-5006 50×Rp2" 50.8×Rp2" 48.6×Rp2"

?
